Mechanical PICV vs electronic PICV

One job, two very different machines

Both valves exist to solve the same problem. In a real chilled-water system the differential pressure across any given fan coil is never the number the designer assumed: it moves as other terminals modulate, as pumps ride their curve, and as the building loads and unloads through the day. A conventional two-port control valve reacts to that by passing more or less water than its schedule says, which is how a tower ends up with cold lower floors and complaints on level 22. A pressure independent control valve removes the variable — it delivers the flow it was set to deliver, regardless of what the differential is doing. If the principle itself is new to you, start with what a pressure independent control valve actually does.

The disagreement is not about the principle. It is about the machinery you install to achieve it, on every terminal, for the next twenty years.

Cartridge versus sensor loop

A mechanical PICV stacks three functions into one body: a differential pressure regulator, an adjustable presetting orifice, and a control valve driven by the room thermostat or the BMS output. The regulator is a spring working against a rolling diaphragm. When the differential rises, the diaphragm squeezes the regulating element and holds the pressure drop across the presetting orifice constant; flow therefore stays constant too. Nothing is measured, nothing is computed, and nothing needs to be told what to do. The Pettinaroli ranges we supply — EvoPICV 91 and the Dynasty 92 Series — work exactly this way, and are set at the valve with a scale you can read on site.

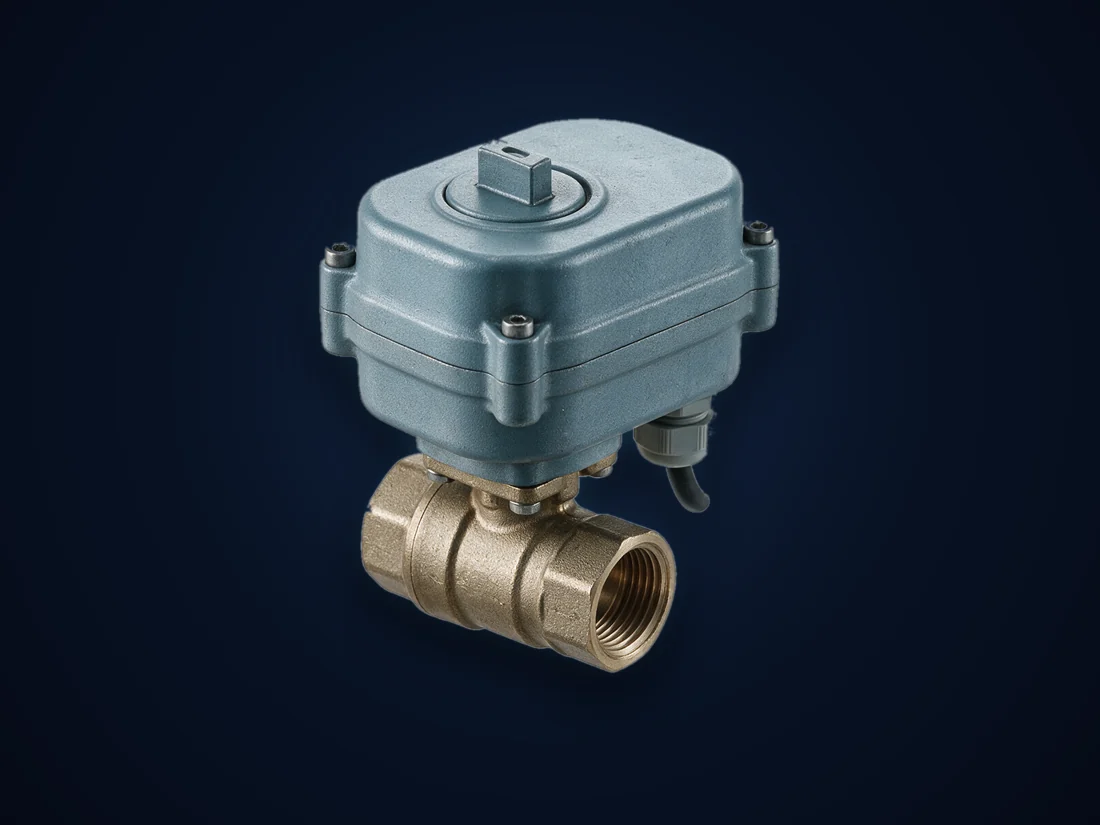

An electronic PICV replaces the diaphragm with instrumentation. A flow sensor (ultrasonic or magnetic) or a full energy meter watches what the terminal is actually receiving; a smart actuator drives the plug to whatever position the software calculates; the whole loop reports back to the building management system. It is a genuinely capable device — and it is a small computer sitting in a wet plantroom, drawing power, on a cable someone has to pull, terminate and eventually fault-find.

What the premium actually buys, and what it costs

The multiple is what decides most projects. An electronic PICV inflates the valve budget by two to four times — and on a terminal-unit package that number is not paid once, it is paid per valve, several hundred times over in a mid-rise office tower. The line item that follows is rarely priced at tender: power to every valve, containment, terminations, a commissioning tool, and an addressable point on the BMS for each one. By the time the package is live, the delta is not a valve premium; it is a small electrical subcontract.

The running cost is quieter and lasts longer. Closed-loop water in a Malaysian building is not laboratory clean — it carries magnetite, jointing compound, pipe scale and whatever the flushing regime missed. A diaphragm does not care. A sensing element does: it drifts, and a drifting sensor is worse than no sensor, because the BMS keeps reporting a number that is no longer true. Add the fact that a fault now needs someone who can read a wiring diagram rather than someone who can turn a setting, and the maintenance profile of the building changes for its whole life.

• Valve budget inflated 2× to 4× per terminal, multiplied across the whole package
• Power, wiring and terminations added to a valve that previously needed none
• Sensor drift in dirty closed-loop water, reported to the BMS as fact
• Electronics-literate maintenance required for the life of the installation

Where an electronic PICV genuinely earns its place

There are duties where the electronic valve is the right answer and we will say so on the call. If the client's requirement is energy metering — per-tenant billing, a green-building submission that has to be evidenced, or plant-level analytics that someone will actually read — then live flow, return temperature and energy at the valve is not a luxury, it is the deliverable. Buying a separate meter and a mechanical PICV often costs more than one electronic valve doing both jobs. The same logic applies to a handful of large air handling units where each valve is individually significant, re-ranging from the BMS saves real site visits, and the count is small enough that the wiring is trivial.

What does not survive scrutiny is applying that argument to three hundred fan coils. The analytics from a single terminal unit are almost never read; the cost is multiplied by three hundred; and the failure surface grows by the same factor. Metering belongs where the meter is worth having — which is usually the branch, the floor or the plant item, not the ceiling void. The whole-system view, from riser to terminal, is set out in our pillar guide to hydronic balancing and PICV for commercial buildings.

The recommendation we actually give

We are a distributor, not a manufacturer of either type, and we have no reason to talk anyone out of the more expensive valve. We do it anyway, because the arithmetic on terminal units is not close.

If a project has already been designed around electronic valves, that is not a reason to reopen it — but it is worth checking that the metering requirement driving the spec exists in the client's brief, and not just in a manufacturer's presentation. Send us the flow schedule and the terminal list and we will size both options against it, so the comparison is your own numbers rather than ours. The valves themselves come from the Pettinaroli line we supply, sized per terminal and preset before dispatch.
